MetroLED by Universal Fibre Optics
Linear LED lighting system for display illumination
System Overview
MetroLED redefines what is possible with LED cabinet lighting.
Traditionally, displays are either designed around existing case lighting, or else a costly new lighting system is installed. With MetroLED you just change the lights.
Do your displays require all spotlighting effects? Or a complete linear case wash? Or any mixture of the two?
Only MetroLED allows you to have all these combinations from one system.
All components are plug-and-play - just swap out the parts you don't need and push in the ones you do.
MetroLED - It really is Child's Play.

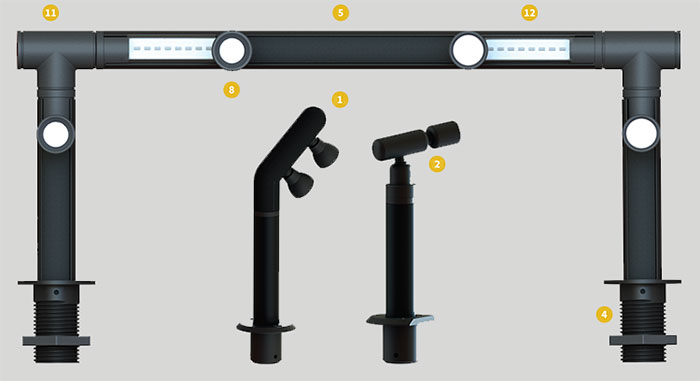

System Components
 |
 |
 |
| 1. 45° Elbow Part: MTL-EB |
2. Driver and Dimmer Part: MTL-D4 or MTL-D7 |
3. Twistlock Spot Fitting Part: MTL-SL-3K or MTL-SL-4K |
 |
 |
 |
| 4. Mounting Feet Part: MTL-MF / RT / RS / CT |
5. Spare Infill Part: MTL-EB |
6. Gooseneck Fitting Part: MTL-GS-3K or MTL-GS-4K |
 |
 |
 |
| 7. 20mm Extrusion & Infill Part: MTL-EI |
8. Trumpets & Lenses Part: MTL-LNS-CL / MO-W / N / C / F / D |
9. End Cap Part: MTL-EC |
 |
 |
 |
| 10. Power In Connector Part: MTL-PIC |
11. Rotating Corner - Left or Right Part: MTL-RC/L or MTL-RC/R |
12. Linear Strip - 45,95 or 245mm Part: MTL-LS/45/95/245/ - 3K/4K |
 |
 |
|
| 13. Dimmer Plate Part: MTL-DP |
14. Power Supply Unit Part: MTL-PSU |
Ordering Notes
- Rotating corners are available in left and right handed versions. please suffix code with L or R to signify.
- Three types of mounting feet are available - round threaded as well as round and corner screw down.
- Two ranges of trumpets available. Classic (CL) & Contemporary (Co). Classic trumpets have clear or frosted lenses whilst contemporary are clear or diffused.
- Both trumpet ranges are available with wide or narrow angled lenses.
- Twistlock spot fittings, gooseneck, elbow and linear strip modules are available in both 3K & 4K colour temperature variants.
- All parts are available in black, white or grey. please specify when ordering.
- power supply unit has fittings for uK, uS and Eu sockets. Can be used with driver & dimmer or individually if no dimming is required.
- Dimmer cover plates fit over standard single gang lighting pattress and are available in chrome, brass and brushed aluminium colours.
- We are constantly looking at ways to enhance MetroLED, so specifications are subject to change without notice.
